Intake Air Temperature Sensor Location

The intake air temperature sensor also known as an IAT sensor or air intake sensor is an electronic sensor that is responsible for measuring the temperature of the air that enters the engine. This information is then sent to the engine control unit, which uses it to adjust the amount of fuel that is injected into the engine. This helps to ensure that the engine runs at its optimal temperature, which in turn improves fuel efficiency and performance.

The sensor is a resistance-based sensor that uses a thermistor, which changes its reading according to the temperature around it. It is usually made of metal, and it is important that it not be exposed to direct sunlight or hot engine coolant. If the sensor gets too hot, it can give false readings.

In this powerful article, you are going to learn three different locations of intake air temperature sensors.

Related Post: Intake Air Temperature (IAT) Sensor

Intake Air Temperature Sensor Location

Intake Air Temperature Sensor Location
Intake Air Temperature Sensor Location

One of the most important sensors in a car is the Intake Air Temperature sensor. This sensor is responsible for measuring the temperature of the air going into the engine. An intake air temperature sensor can be installed separately or integrated into other sensors.

In the past, mostly the IAT sensor used to come separately in the intake air duct, but these days, the IAT sensor mostly comes integrated into other sensors such as MAF and MAP sensors. Below are the three different locations of the IAT sensor.

Related Post: 7 Symptoms Of Bad Intake Air Temperature (IAT) Sensor

1. A Stand-Alone Intake Air Temperature Sensor Location

A Stand-Alone Intake Air Temperature Sensor Location
A Stand-Alone Intake Air Temperature Sensor Location

A stand-alone Intake Air Temperature sensor of the car is a separate two-wire sensor, installed pre-throttle in the air duct between the air filter box and throttle body. Sometimes, It is located in the air cleaner housing or screwed into the intake manifold.

In the past, the IAT sensor was used to thread on the intake manifold of the engine, that’s why it was called Manifold Air Temperature (MAT) sensor. It is placed in such a way that the tip of the IAT sensor touches the air entering the intake manifold of the car to determine the temperature of the air.

Related Post: IAT Sensor Wiring Diagram

2. Intake Air Temperature Sensor Integrated Into MAF Sensor Location

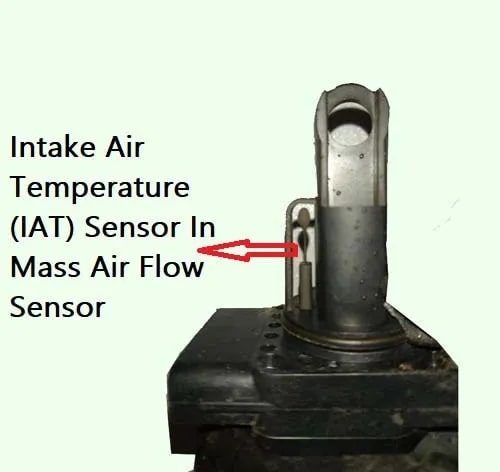

Intake Air Temperature Sensor Integrated Into Mass Air Flow Sensor
Intake Air Temperature Sensor Integrated Into Mass Air Flow Sensor

An intake air temperature sensor can be built into Mass Air Flow (MAF) Sensor. In car engines that have Mass Airflow Sensors, it calculates the amount of air entering the engine. The placement of the MAF sensor can be under the intake plenum placed between the air filter and intake manifold of the engine.

The mass air flow sensor usually has four or five wires. The MAF sensor uses only two or three wires to function, and the other two wires are for the intake air temperature sensor. So, a MAF sensor having more than three wires indicates the presence of an intake air temperature sensor.

If you want to know further about the MAF sensor and its diagram, I have comprehensively explained it in the below articles.

Related Post: What Is Mass Air Flow Sensor

Related Post: 5 Wire Mass Air Flow (MAF) Sensor Wiring Diagram

3. Intake Air Temperature Sensor Integrated Into MAP Sensor Location

Manifold Absolute Pressure (MAP) Sensor
Manifold Absolute Pressure (MAP) Sensor

The Manifold Absolute Pressure (MAP) sensor of the car also has an IAT sensor, integrated into it and could be found between the passages of air intake below the hood. The MAP sensor reads the amount of pressure of the engine’s intake manifold. It is either located on the body of the intake manifold or the throttle.

Normally, a MAP sensor has three wires, but when the intake air temperature sensor is integrated into the MAP sensor, then leads to the four wires, and this extra fourth wire is for the intake air temperature sensor. Here are the comprehensive articles about the MAP sensor and its diagram.

This is an Info
Some engines also consist of multiple Intake Air Temperature Sensors such as the V6 or V8 engines have two IAT sensors on each of the split intake manifolds.

Related Post: How To Test Intake Air Temp (IAT) Sensor With Multimeter
